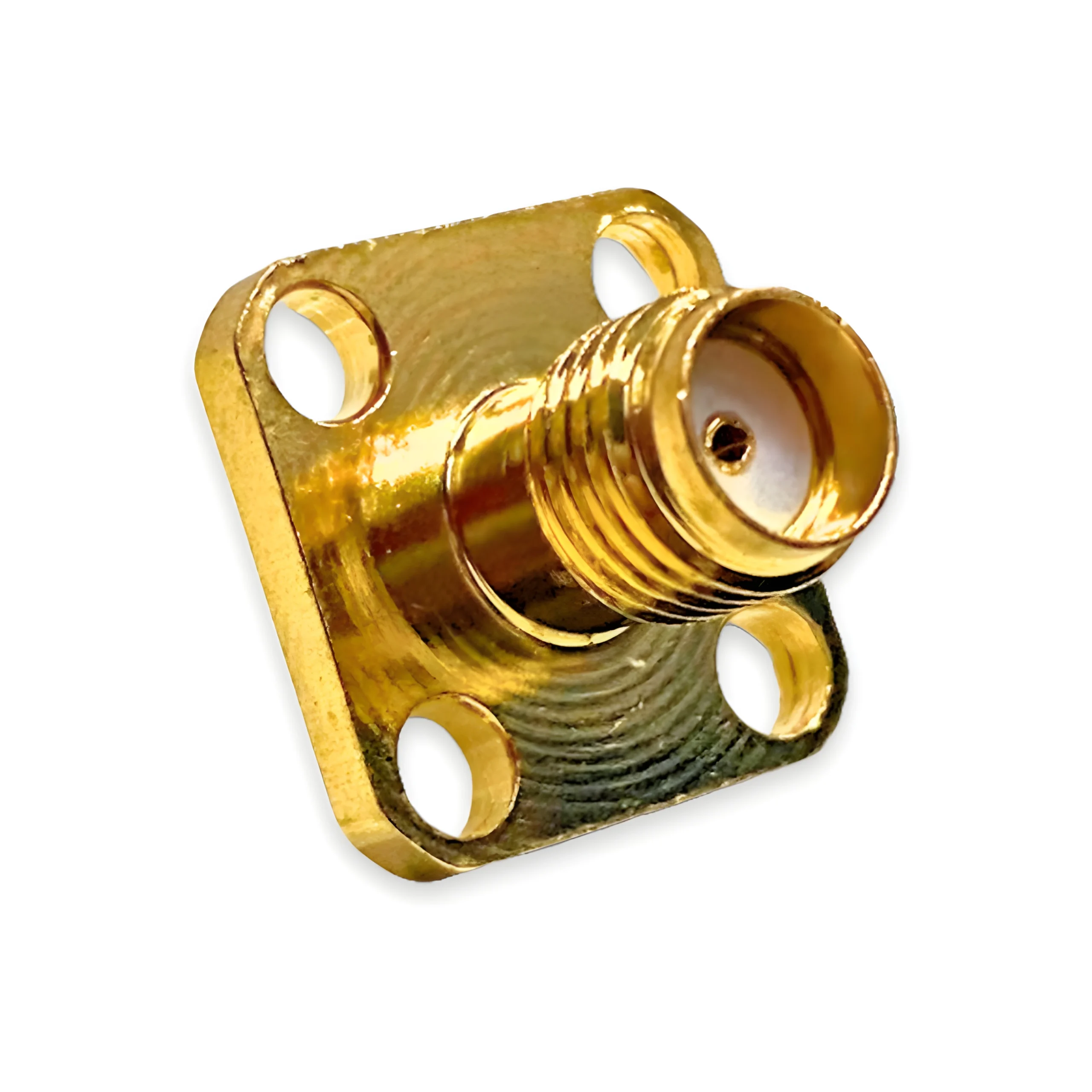

Name: SMA Female Panel Mount Connector – 50Ω, Flange, Solder
SKU: 4952
Availability: InStock

SMA Female Panel Mount Connector – 50Ω, Flange, Solder

₹80.00

+18% GST

Connector Type: SMA Female, Flange Mount
Impedance & Frequency: 50Ω, Up to 12.4 GHz
Termination Style: Solder, Straight Orientation
Material & Plating: Brass Body, Gold-Plated Contacts
Insulation & VSWR: PTFE Dielectric, VSWR ≤1.3

24 x 7 Customer Support
Fast Delivery
High Quality Products

Guaranteed Safe Checkout

The SMA Female Panel Mount Connector is a high-frequency RF connector designed for secure flange mounting in demanding RF and microwave applications. With a 50-ohm impedance and a maximum frequency of 12.4 GHz, this connector ensures low signal loss, excellent impedance matching, and stable RF transmission. Built from high-quality brass with gold-plated contacts, it offers enhanced conductivity and corrosion resistance. The straight orientation and solder termination make it ideal for precision RF applications, including wireless communication, antennas, telecom, and high-frequency coaxial systems.

USE

RF Communication Systems – Provides a secure panel-mounted SMA interface for radio transmitters, receivers, and base stations, ensuring stable RF signal transmission.
Microwave & Satellite Equipment – Supports high-frequency operations up to 12.4GHz, making it ideal for satellite communication, radar, and microwave link applications.
Antenna Connections in Enclosures – Used for external antenna mounting in RF enclosures, routers, and IoT devices, ensuring low-loss signal transfer and durability.
Test & Measurement Equipment – Ensures precision RF connectivity in spectrum analyzers, network analyzers, and lab instrumentation requiring flange-mounted SMA interfaces.
Wireless & Telecom Infrastructure – Essential for coaxial connections in telecom panels, base stations, and wireless networking, ensuring consistent impedance and minimal signal loss.

FAQS

Q: How does the panel mount design benefit RF applications?
A: The flange mount ensures a secure and stable connection, reducing mechanical strain and providing low-loss RF signal transmission in enclosures and panel-mounted systems.
Q: Why is a 50Ω impedance important for this connector?
A: A 50-ohm impedance minimizes signal reflection, ensuring optimal power transfer and maintaining consistent RF performance up to 12.4 GHz.
Q: What are the advantages of solder termination in this connector?
A: Solder termination provides a robust, low-resistance connection, reducing RF leakage and ensuring long-term stability in high-frequency applications.
Q: Is this connector suitable for outdoor RF installations?
A: Yes, when used with proper sealing or enclosures, the nickel-plated brass body enhances durability, making it ideal for telecom, antenna, and industrial RF applications.
Q: What precautions should be taken for high-frequency applications?
A: Ensure precise mounting, proper soldering, and secure cable connections to maintain low VSWR, reduce interference, and achieve
