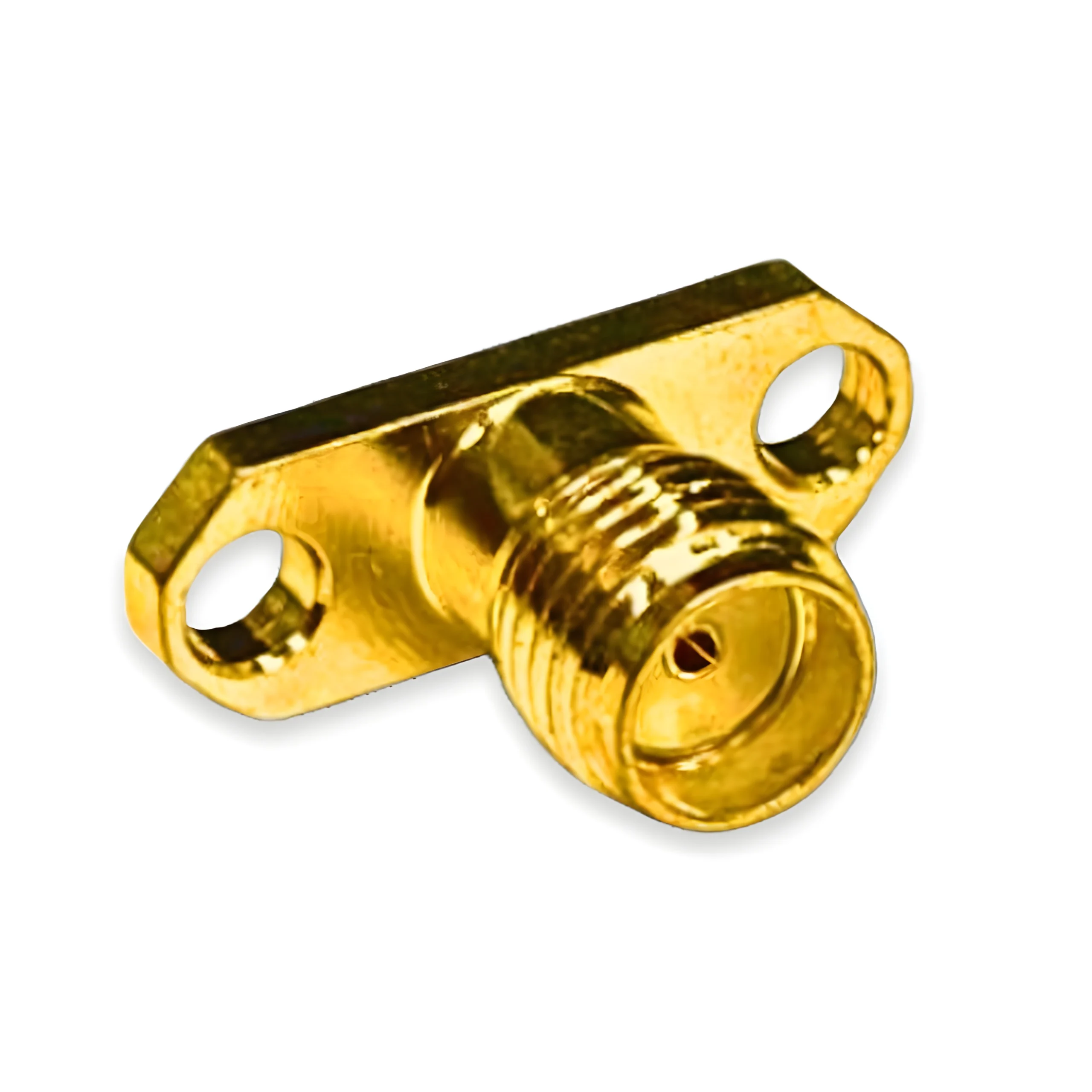

High Quality Products The SMA Female Edge Mount Connector (2-Hole Flange) is a high-frequency RF adapter designed for secure PCB or panel installations. Constructed from pure brass with gold-plated contacts, it delivers low signal loss, high conductivity, and corrosion resistance. The SMA female end features an inner bore, while the 2-hole flange mount ensures firm attachment with easy solder post termination. Engineered for antennas, Wi-Fi, telecom, LMR, and microwave applications, this connector supports reliable RF transmission in coaxial cable networks, digital communication systems, and CCTV setups.
USES
-
RF & Microwave Communication Systems – Ensures stable, low-loss signal transmission in high-frequency applications such as satellite communications, radar systems, and RF test equipment.
-
Wi-Fi & Wireless Networking – Provides a secure PCB-mounted SMA interface for Wi-Fi routers, wireless access points, IoT devices, and RF antennas, enhancing signal integrity.
-
Telecom & LMR (Land Mobile Radio) Equipment – Supports coaxial RF connectivity in telecom base stations, repeaters, and land mobile radio networks, ensuring reliable communication links.
-
CCTV & Surveillance Systems – Used in coaxial video transmission for security camera setups, allowing interference-free RF signal routing in professional surveillance applications.
-
Embedded PCB & Circuit Board Designs – Ideal for RF circuit integration, providing a compact and stable edge-mount connection for high-frequency PCB applications, reducing signal loss and impedance mismatch
FAQS
-
How does the 2-hole flange improve RF stability?
- The 2-hole flange mount provides rigid mechanical support, minimizing vibration-induced signal disruptions and ensuring a secure ground connection for stable RF performance.
-
What impact does PTFE insulation have on signal integrity?
- PTFE (Polytetrafluoroethylene) offers low dielectric loss and high thermal stability, reducing insertion loss and maintaining consistent impedance matching across high frequencies.
-
Why is gold-plating essential for SMA connectors?
- Gold-plated contacts reduce oxidation and contact resistance, ensuring low-loss signal transmission, enhanced RF conductivity, and long-term durability in high-frequency applications.
-
What is the recommended torque for mating this SMA connector?
- To prevent thread damage and impedance mismatch, the SMA Female connector should be tightened to 0.6–1.1 Nm (5–10 in-lbs) using a calibrated torque wrench.
-
How does VSWR affect the performance of this connector?
- A low VSWR (≤1.3 up to 3 GHz, ≤1.5 up to 6 GHz) minimizes signal reflection, maximizing power transfer efficiency and ensuring consistent RF performance across the operating range.
