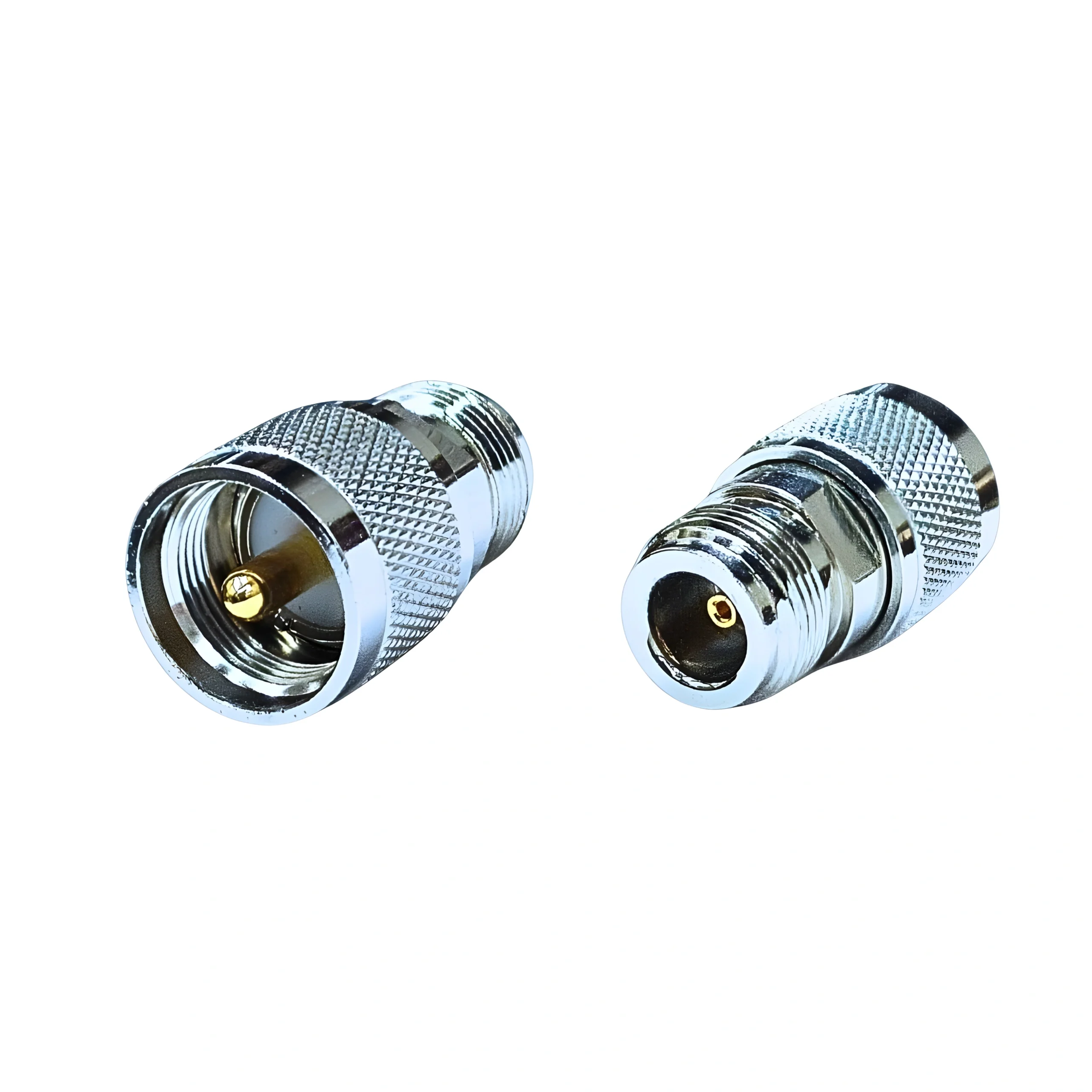

UHF Plug to N-Type Female Adapter | PL259 to N Socket RF Coax Converter

PL-259 UHF male to N-Type female adapter for 50 Ohm RF systems. Supports DC to ~300 MHz, ideal for ham radios, CB radios, and RF testing. Made of nickel-plated brass with gold/brass center pin for reliable conductivity and corrosion resistance.

USES

1. Connect PL-259 Cables to N-Type Devices – Enables seamless interface between UHF male connectors and N-Type female ports in RF setups.
2. Ham Radio Base Station Setup- Ideal for adapting legacy PL-259 equipment to modern N-Type-based ham radio systems.
3. CB Radio Antenna Conversion – Used to connect CB antennas with PL-259 plugs to N-Type input connectors.
4. RF Testing and Measurement – Reliable adapter for linking UHF output devices to N-Type test instruments in lab environments.
5. Low-Frequency Signal Routing – Supports DC to ~300 MHz frequency range, perfect for low-frequency RF applications and patch panels.

FEATURES

UHF Plug to N-Type Socket Design
Converts PL-259 male to N-Type female with precise connector fit for RF systems.
2. 50 Ohm Impedance
Maintains signal integrity across standard RF and communication applications.
3. Nickel-Plated Brass Construction
Durable, corrosion-resistant housing ensures long-term reliability in all environments.
4. Gold/Brass Center Pin
Improves electrical conductivity and minimizes signal loss during transmission.
5. Easy Screw-On Installation
Tool-free connection with secure threading for fast and stable setups.

FAQS

1. What is the typical insertion loss for this UHF to N-Type adapter?
While exact values vary by manufacturer, insertion loss is minimal—typically under 0.15 dB at frequencies below 300 MHz, which is within the adapter’s optimal range.
 2. Can this adapter be used for high-frequency applications above 300 MHz?
No, UHF connectors (like PL-259) are not precision-grade and are not recommended above ~300 MHz due to increased VSWR and signal degradation.
3. Is this adapter suitable for outdoor RF applications?
Yes, the nickel-plated brass construction offers corrosion resistance. However, for long-term outdoor use, weatherproofing (e.g., shrink wrap or sealant) is recommended.
 4. Does this adapter maintain 50 Ohm impedance throughout the connection?
Yes, both the PL-259 and N-Type connectors are rated for 50 Ohms, ensuring impedance matching across typical RF systems to prevent signal reflection.
 5. Can this be used in high-power RF setups like transmitters?
Yes, it can handle moderate RF power levels typical in ham and CB applications, but always check the power rating and temperature tolerance for continuous high-power use.
