MC4 2-Way Solar Connector Set – Y Branch Male to Female | Waterproof PV Wire Splitter

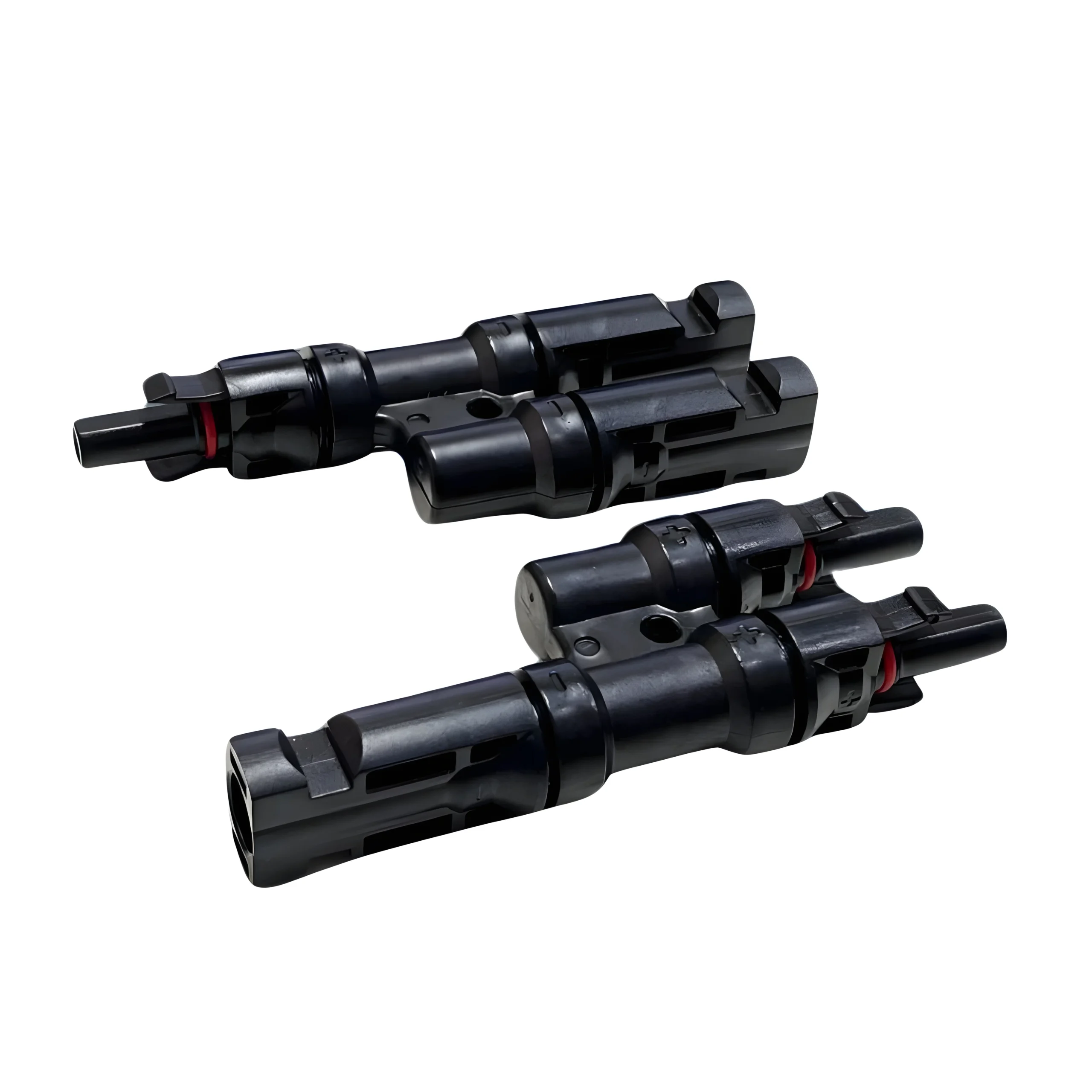

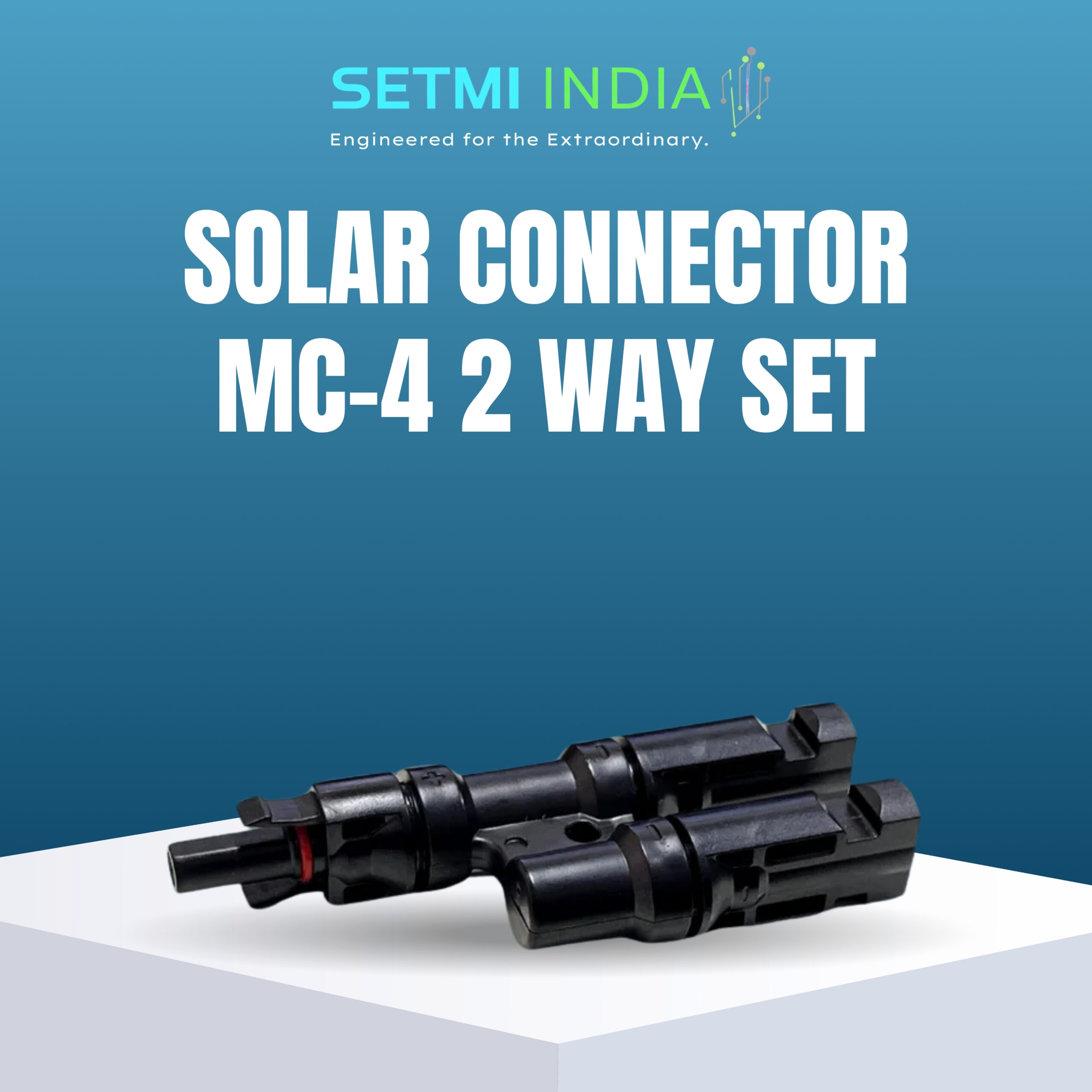

This MC4 2-Way Set includes 1 male to 2 female & 1 female to 2 male Y branch connectors, ideal for connecting solar panels in parallel.
Compatible with 2.5/4/6mm² cables, it supports up to 1000V DC, 30A current and provides IP67 waterproof protection for outdoor PV setups.
Perfect solar panel wire connectors for reliable and secure multi-panel connections using MC4 connectors.

USES

Parallel Solar Panel Connections – Ideal for connecting two solar panels in parallel using mc4 2 way set.
Solar Farms – Suitable for high-capacity solar farms where mc4 connectors for solar panels ensure stable current flow.
Rooftop PV Installations – Commonly used in rooftop systems with multiple solar panels requiring 2 way solar connector branches.
Solar Charge Controllers – Compatible with solar panel wire connectors to distribute power to charge controllers efficiently.
RV & Off-grid Systems – Best for compact and mobile solar setups using mc4 connector sets in off-grid applications.

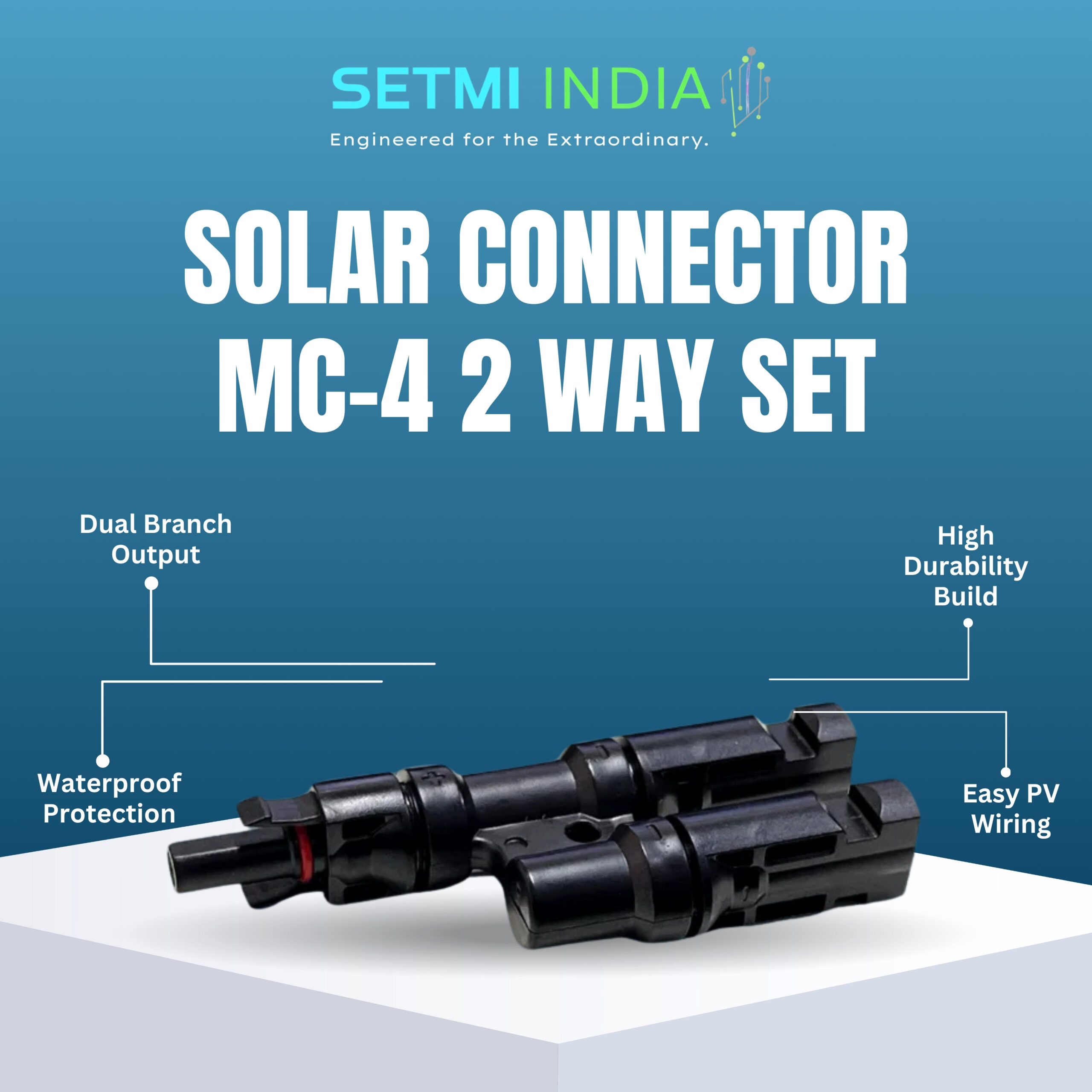

FEATURES

2-in-1 Y Branch Configuration – Set includes 1 Male to 2 Female and 1 Female to 2 Male mc4 connectors.
High Current Capacity – Supports up to 30A, perfect for handling higher power flow in solar connector systems.
Waterproof & Dustproof (IP67) – Sealed mc4 2 way set ensures safe outdoor performance in any weather.
Universal PV Cable Support – Fits 2.5mm² / 4mm² / 6mm² solar panel wire connectors for maximum flexibility.
Secure Locking System – Snap-in mechanism provides firm, vibration-proof mc4 connector locking.

FAQS

Q: Can this MC4 2-way connector be used for series connection?
A: No, this set is designed for parallel connections only using a Y-branch format.
Q: Is this connector compatible with 1500V systems?
A: Most are rated up to 1000V DC, but some certified variants can support 1500V – check product certification.
Q: Will this fit my 4mm² solar cable?
A: Yes, it supports 2.5mm², 4mm², and 6mm² PV cables universally.
Q: Is it safe to install this under rain or sunlight?
A: Yes, it’s IP67-rated, offering complete protection from water and dust.
Q: How secure is the locking system during vibrations or wind?
A: The snap-in locking mechanism ensures a strong hold even in harsh outdoor conditions.
