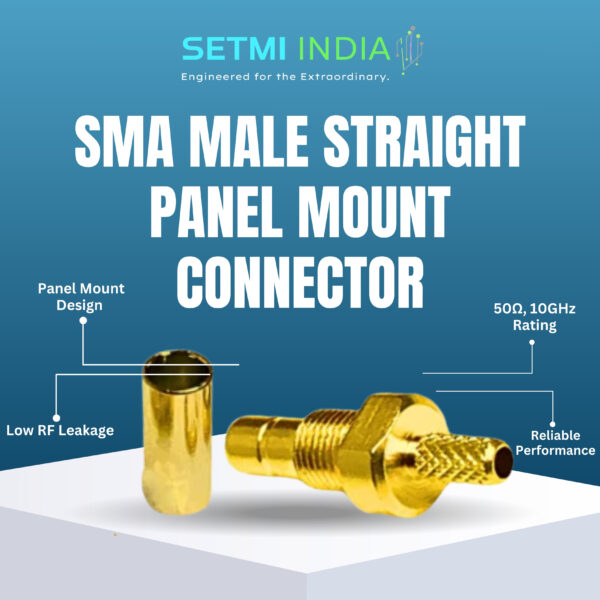

The SMA Male Straight Panel Mount Connector is a precision-engineered RF component designed for stable, low-loss signal transmission in high-frequency applications. With a 50Ω impedance and a wide frequency range up to 10 GHz, this connector ensures consistent impedance matching and minimal RF leakage (-55 dB). Built with low-contact resistance (≤5mΩ inner, ≤2.5mΩ outer) and high insulation resistance (≥1000MΩ), it delivers exceptional electrical performance. The panel mount design provides secure installation, while the rugged brass construction ensures durability for ≥500 mating cycles.
USES
Secure Panel Mount RF Applications – Ideal for chassis and panel-mounted RF systems, ensuring stable and low-loss signal transmission in high-frequency environments.
High-Frequency Wireless Communication – Supports seamless RF connectivity in telecom, radar, and satellite communication systems with a frequency range up to 10 GHz.
RF Testing & Measurement Equipment – Ensures reliable signal transmission in laboratory and industrial RF testing setups, minimizing interference with low RF leakage (-55 dB).
Antenna & Microwave Systems – Provides efficient RF signal routing in antennas, microwave communication devices, and signal boosters with consistent 50Ω impedance matching.
Durable Connection for Repeated Use – Engineered for long-term applications, supporting ≥500 mating cycles with gold-plated contacts for minimal signal degradation over time.
FAQS
What makes the SMA Male Straight Panel Mount Connector ideal for high-frequency applications? This connector supports frequencies up to 10 GHz with a stable 50Ω impedance, ensuring low-loss RF signal transmission and minimal interference, making it perfect for telecom, microwave, and antenna systems.
How does the panel mount design benefit RF installations? The secure panel mount configuration provides a firm and stable attachment to enclosures or chassis, preventing signal disruptions caused by movement or vibration in high-frequency environments.
What is the durability of this SMA connector? Built with high-quality brass and gold-plated contacts, it is rated for over 500 mating cycles, ensuring long-term reliability in demanding RF applications.
How does this connector minimize signal interference? With low RF leakage (-55 dB), high insulation resistance (≥1000MΩ), and low contact resistance (≤5mΩ inner, ≤2.5mΩ outer), it prevents unwanted signal loss and interference, enhancing overall system performance.
Can this connector be used for RF testing and measurement applications? Yes, it is designed for precision RF testing setups, offering consistent impedance matching and excellent shielding for accurate signal transmission in lab and field testing environments.
