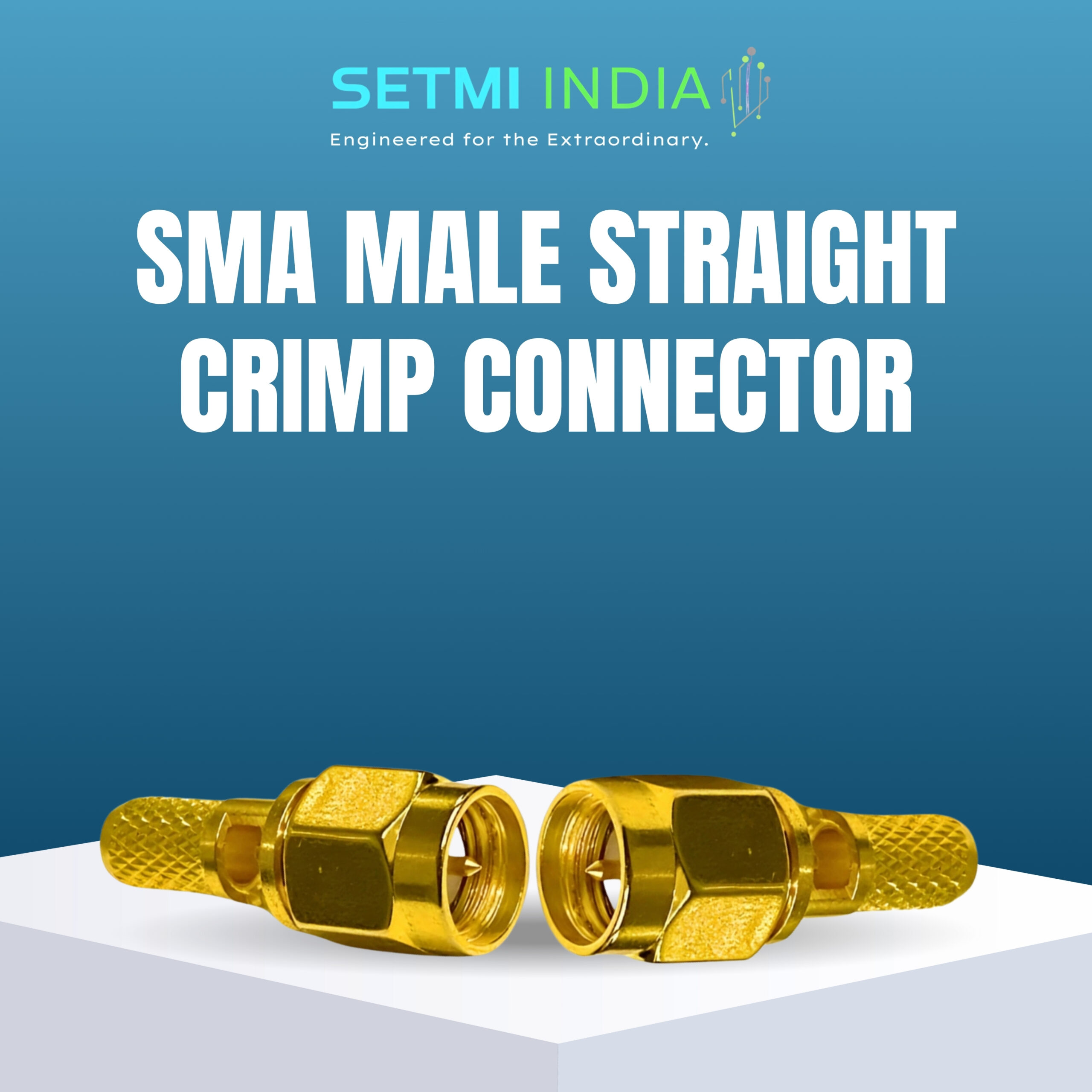

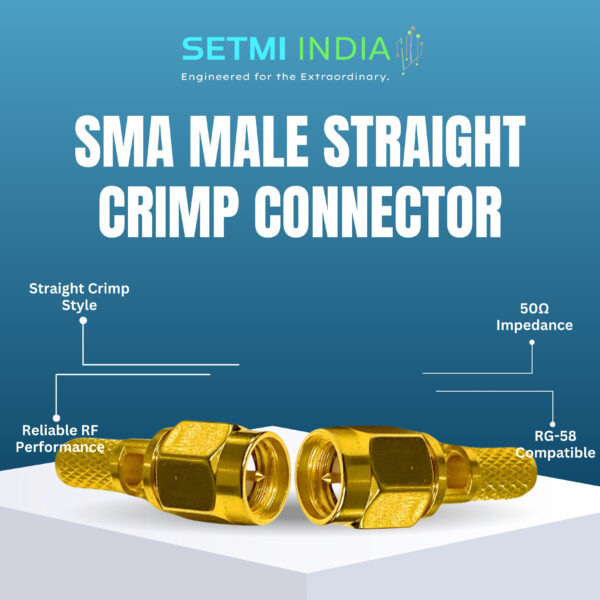

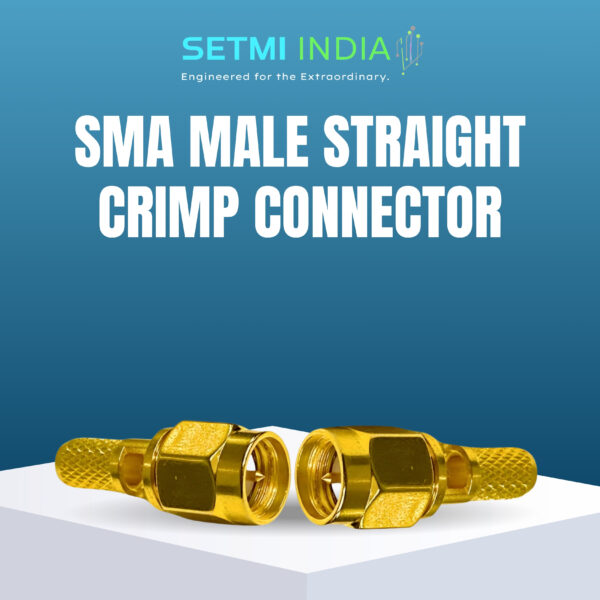

SMA Male Straight Crimp Connector, Male Pin, 50Ω, RG- 58

₹54.00

+18% GST, , , ,
  1. Impedance & Frequency: 50Ω, 0 – 12.4 GHz
  2. Voltage Rating: 335V working, 1000Vrms withstand
  3. Material & Plating: Gold-plated brass body, gold-plated phosphor bronze conductor
  4. Insulator & Durability: PTFE dielectric, >500 mating cycles
  5. VSWR Performance: ≤1.1 for minimal signal reflection
  • 24 x 7 Customer Support
  • Fast Delivery
  • High Quality Products
Categories: , , , ,
Guaranteed Safe Checkout

Description

The SMA Male Straight Crimp Connector is a high-performance RF connector designed for secure and stable coaxial connections in high-frequency applications. With a 50Ω impedance and a wide frequency range of 0 to 12.4 GHz, it ensures low signal loss and efficient power transmission. Built from gold-plated brass with a gold-plated phosphor bronze center conductor, this connector offers superior conductivity, corrosion resistance, and long-lasting durability. The PTFE insulator provides excellent electrical insulation, while its rugged design supports over 500 mating cycles. Engineered for RF communication, telecom, and aerospace applications, this connector ensures consistent impedance matching and minimal signal reflection (VSWR ≤1.1).

USES

  1. High-Frequency RF Communication Systems – Ensures low-loss signal transmission in wireless communication devices, including satellite receivers, base stations, and telecom infrastructure operating up to 12.4GHz.

  2. Antenna & Wireless Module Integration – Provides secure coaxial connectivity for Wi-Fi antennas, GPS modules, and IoT devices, ensuring consistent RF performance with minimal VSWR (≤1.1).

  3. RF Testing & Measurement Equipment – Used in signal analyzers, spectrum analyzers, and RF testing labs where precision and stable impedance (50Ω) are required for accurate signal analysis.

  4. Microwave & Radar Systems – Ideal for military, aerospace, and defense applications, ensuring secure, interference-free connections in radar systems, navigation equipment, and avionics.

  5. Coaxial Cable Assemblies & Custom RF Setups – Allows custom crimp termination for RG-316, RG-174, and other 50Ω cables, enabling flexible cable routing in broadcasting, industrial RF setups, and experimental circuits.

FAQS

  1. What type of coaxial cables is this SMA Male Crimp Connector compatible with?
    This connector is designed for RG-316, RG-174, RG-188, and similar 50Ω coaxial cables, ensuring secure termination and low-loss RF transmission for high-frequency applications up to 12.4 GHz.

  2. How does the gold-plated brass body improve performance?
    The gold-plated brass body and phosphor bronze contacts enhance conductivity, minimize signal loss, and prevent oxidation, ensuring long-term reliability in RF and microwave circuits.

  3. What is the VSWR rating, and why is it important?
    The VSWR (≤1.1) ensures minimal signal reflection and maximum power transfer, which is critical for maintaining consistent RF performance in telecom, aerospace, and wireless applications.

  4. Can this SMA crimp connector handle high-power RF signals?
    Yes, it supports a working voltage of 335V and a withstand voltage of 1000V RMS, making it suitable for high-frequency power transmission in RF communication systems.

  5. Is this connector suitable for extreme environmental conditions?
    Yes, with an operating temperature range of -55°C to +155°C, this connector performs reliably in harsh conditions, including industrial, aerospace, and military RF applications.
