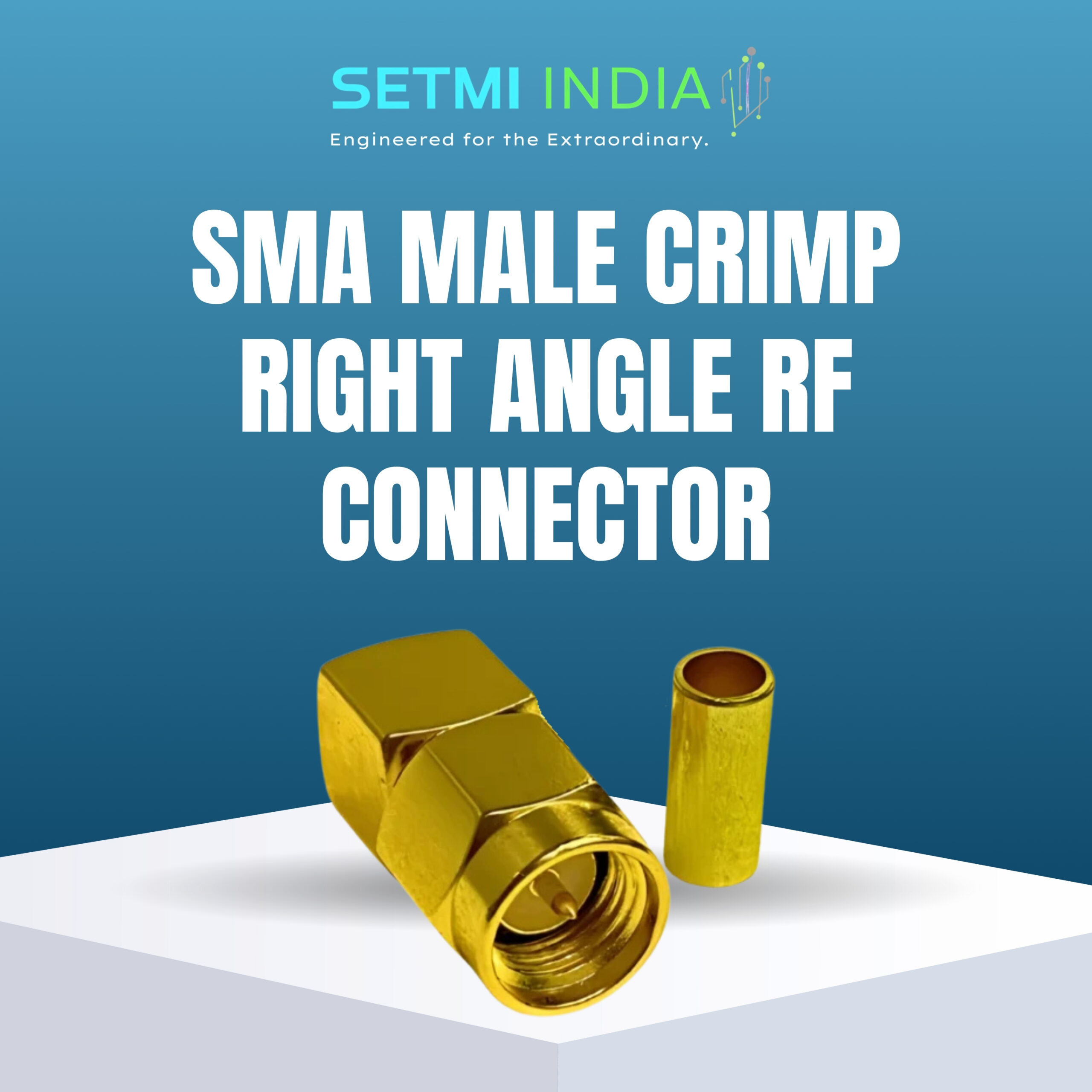

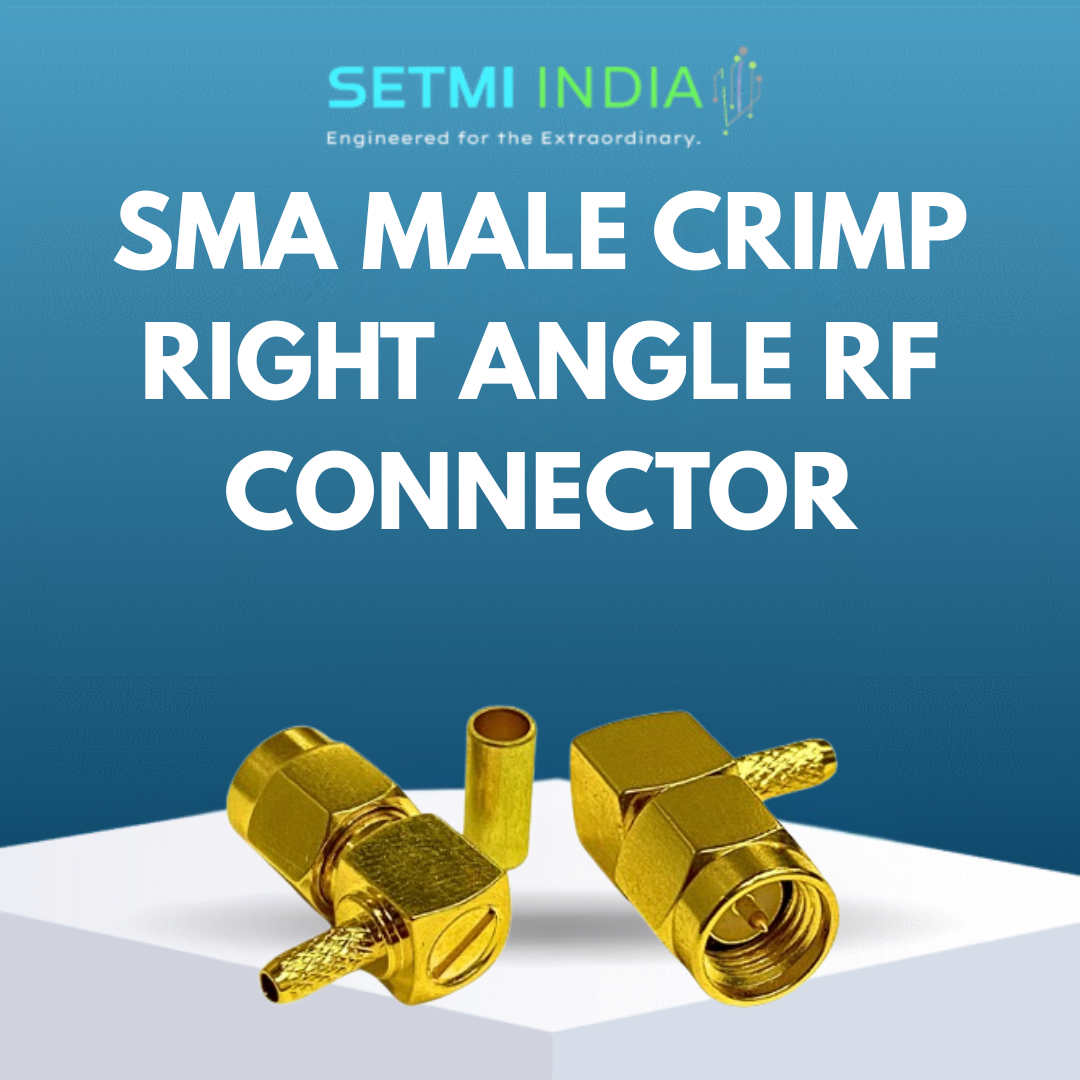

The SMA Male Right Angle Crimp RF Connector is a high-precision RF solution designed for low-loss signal transmission in compact, space-constrained applications. With a 50Ω impedance, it ensures efficient impedance matching, minimizing signal loss and maintaining optimal RF performance. Engineered for frequencies up to 6 GHz, this connector supports wireless, telecom, and RF communication systems. The gold-plated brass body enhances conductivity while resisting corrosion, ensuring long-term durability. Designed for crimp termination, it provides a secure fit with RG316, RG174, LMR100, and similar coaxial cables, making it an ideal choice for custom cable assemblies.
FEATURES

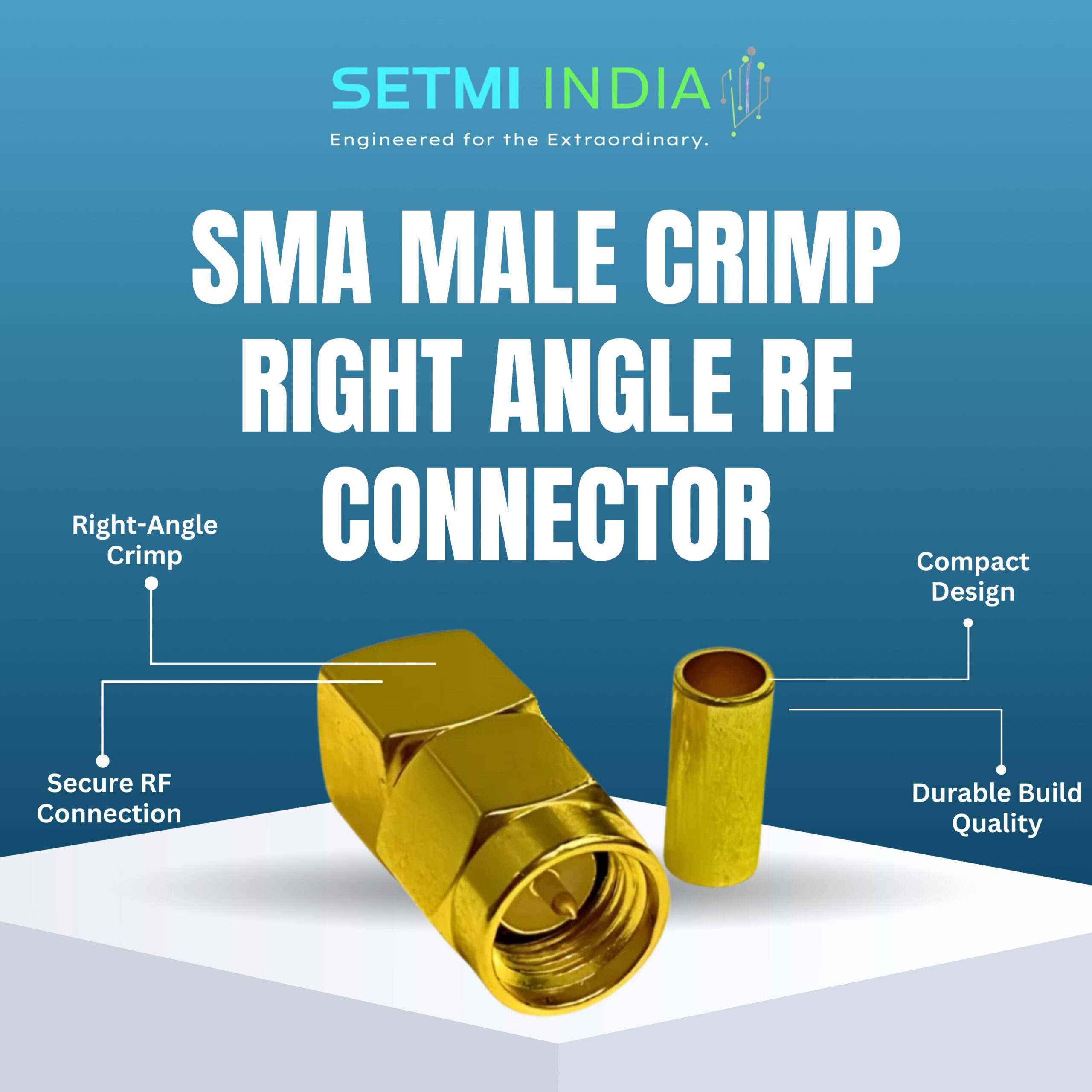

- Precision Right-Angle Design – 90° connector orientation optimizes cable routing in compact enclosures, preventing excessive bending and minimizing signal degradation.
- Gold-Plated Brass Body & Contacts – Constructed from high-quality brass with 24k gold plating, ensuring low contact resistance, corrosion resistance, and superior conductivity for long-term performance.
- Secure Crimp Termination – Designed for permanent, high-retention cable attachment, reducing RF leakage and mechanical failures in dynamic environments.
- Optimized High-Frequency Transmission – Maintains 50Ω impedance, supporting low-loss RF performance up to 6 GHz, ideal for wireless communication, GPS, and RF modules.
- Wide Cable Compatibility – Engineered to fit RG316, RG174, LMR100, and similar coaxial cables, ensuring seamless integration into professional RF applications.
FAQS
-
How does the right-angle design improve installation in RF setups?
- The 90° angle reduces cable strain, prevents excessive bending, and optimizes tight-space PCB and enclosure installations, ensuring stable signal performance.
-
What makes crimp termination more reliable than soldered connections?
- Crimping provides a mechanically strong, vibration-resistant connection with consistent impedance, reducing RF signal loss and long-term wear compared to soldered joints.
-
Is this connector suitable for outdoor or high-humidity environments?
- While the gold-plated brass resists corrosion, it is recommended to use weatherproofing or sealing techniques for outdoor applications to prevent moisture ingress.
-
Can this connector handle high-frequency signals without significant loss?
- Yes, it supports frequencies up to 6 GHz, ensuring low insertion loss and minimal VSWR, making it ideal for 5G, GPS, telecom, and RF signal transmission.
-
What coaxial cables ensure the best performance with this connector?
- For optimal signal integrity, use RG316, RG174, or LMR100 cables, as they offer low-loss transmission and proper impedance matching with this SMA male crimp connector.
