GX30 5-Pin 30mm Aviation Connector | Male Cable & Female Panel Mount

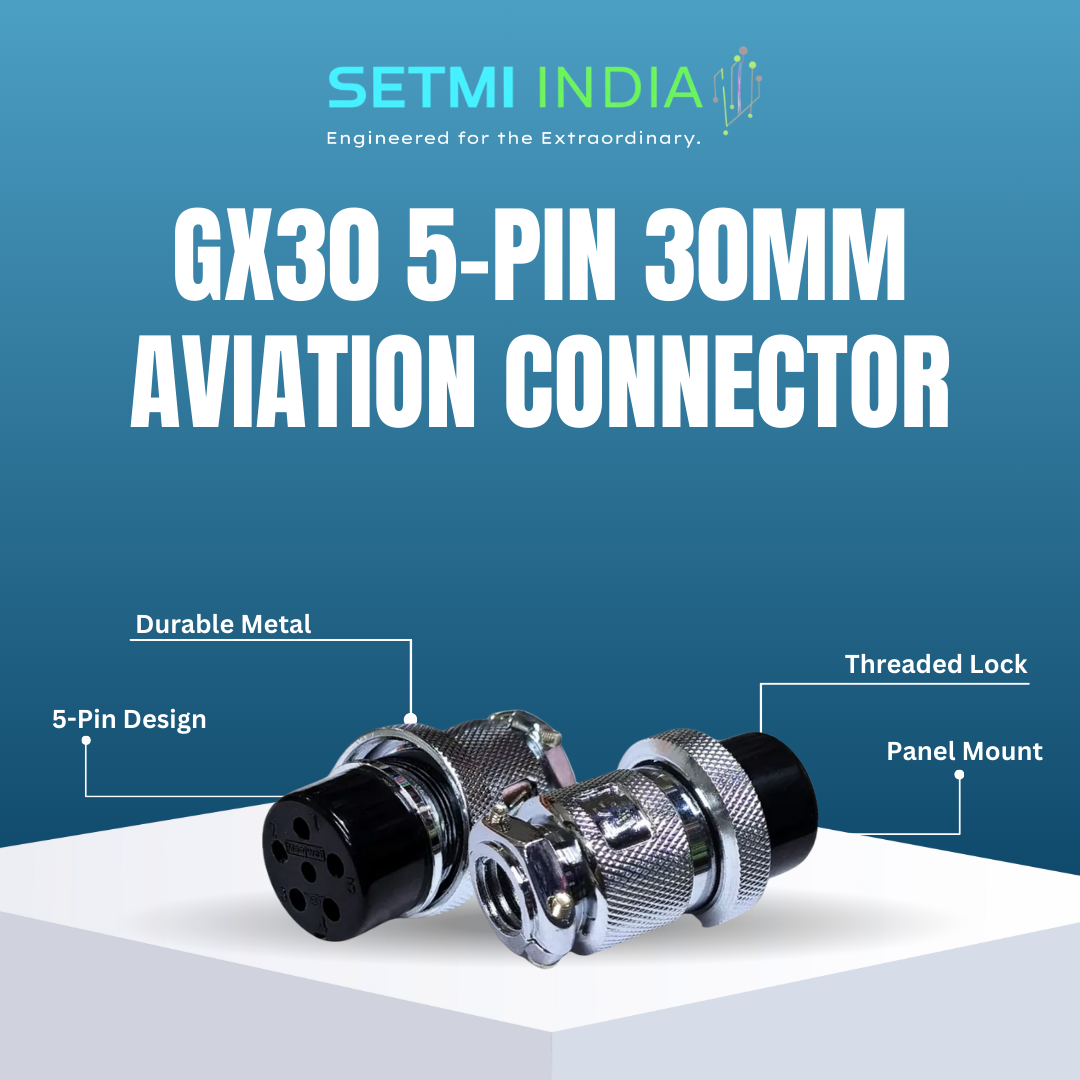

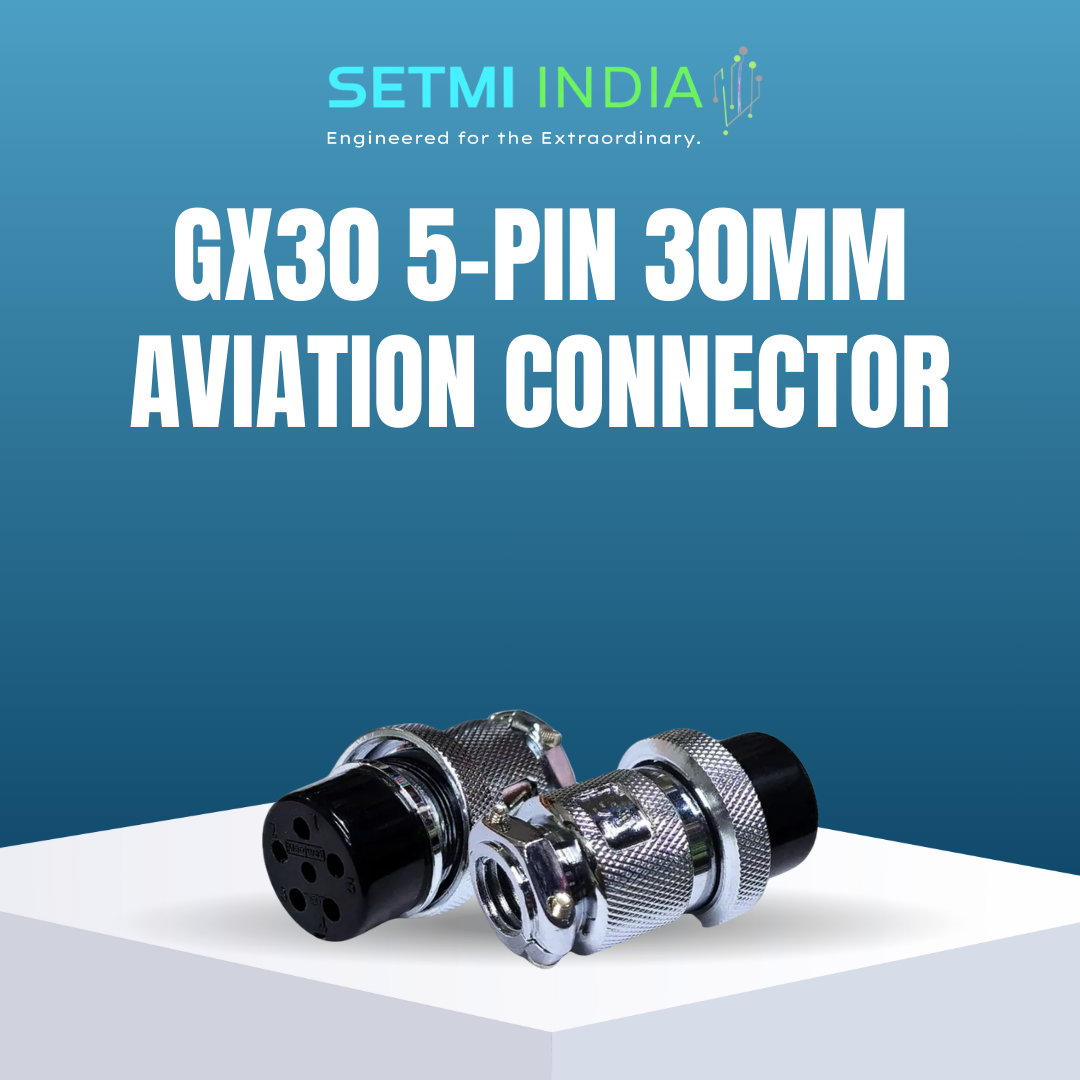

GX30 5-pin 30mm circular aviation connector with threaded screw coupling for secure connections. Supports 250V-600V AC/DC, 20A-30A, featuring nickel-plated brass housing and copper alloy pins for high conductivity. IP65/IP67 waterproof rating, soldered wire terminals, and panel mount design make it ideal for crane systems, industrial power, and automation applications

USES

1. Crane and Hoist Power Connections – Provides stable 250V-600V power transmission in cranes and hoists, preventing disconnection in high-vibration, heavy-load industrial operations.

2. Industrial Automation & Machinery – Ensures secure, high-current connections in control panels and heavy machinery, with a threaded locking system to prevent accidental power loss.

3. Outdoor Power Distribution Systems – IP65/IP67-rated for dust and moisture resistance, making it suitable for harsh weather conditions in outdoor power supply applications.

4. Renewable Energy & Battery Systems – Handles high-voltage DC connections in solar inverters, off-grid battery banks, and energy storage systems requiring stable, soldered power connections.

5. Aerospace, Marine & Transportation Systems – Designed for reliable power transmission in aircraft, ships, and railway networks where high-current, vibration-resistant connectors are required.

FAQS

1. What is the exact torque requirement for securing the M30 x 1.5 threaded coupling?
   The recommended tightening torque is 3-5 Nm, ensuring a secure, vibration-resistant connection without over-stressing the nickel-plated brass housing.

2. How does the GX30 connector handle thermal expansion in high-current applications?
   The gold/silver-plated copper alloy pins minimize contact resistance, preventing overheating due to thermal expansion in continuous 30A load conditions.

3. What is the maximum insertion force for mating the male and female connectors?
   The connector is designed for a maximum insertion force of 25N, ensuring firm engagement while maintaining ease of repeated connections over 500 mating cycles.

4. How does the IP67 rating affect long-term exposure to high-humidity environments?
   The sealed gasket design prevents moisture ingress, ensuring stable electrical conductivity even in marine, outdoor, and industrial washdown environments.

5. What is the exact solder cup depth, and how does it affect wire termination?
   The solder cup depth is 6.5mm, providing ample contact area for 12-16 AWG wires, ensuring mechanically secure and low-resistance connections in high-power applications.
