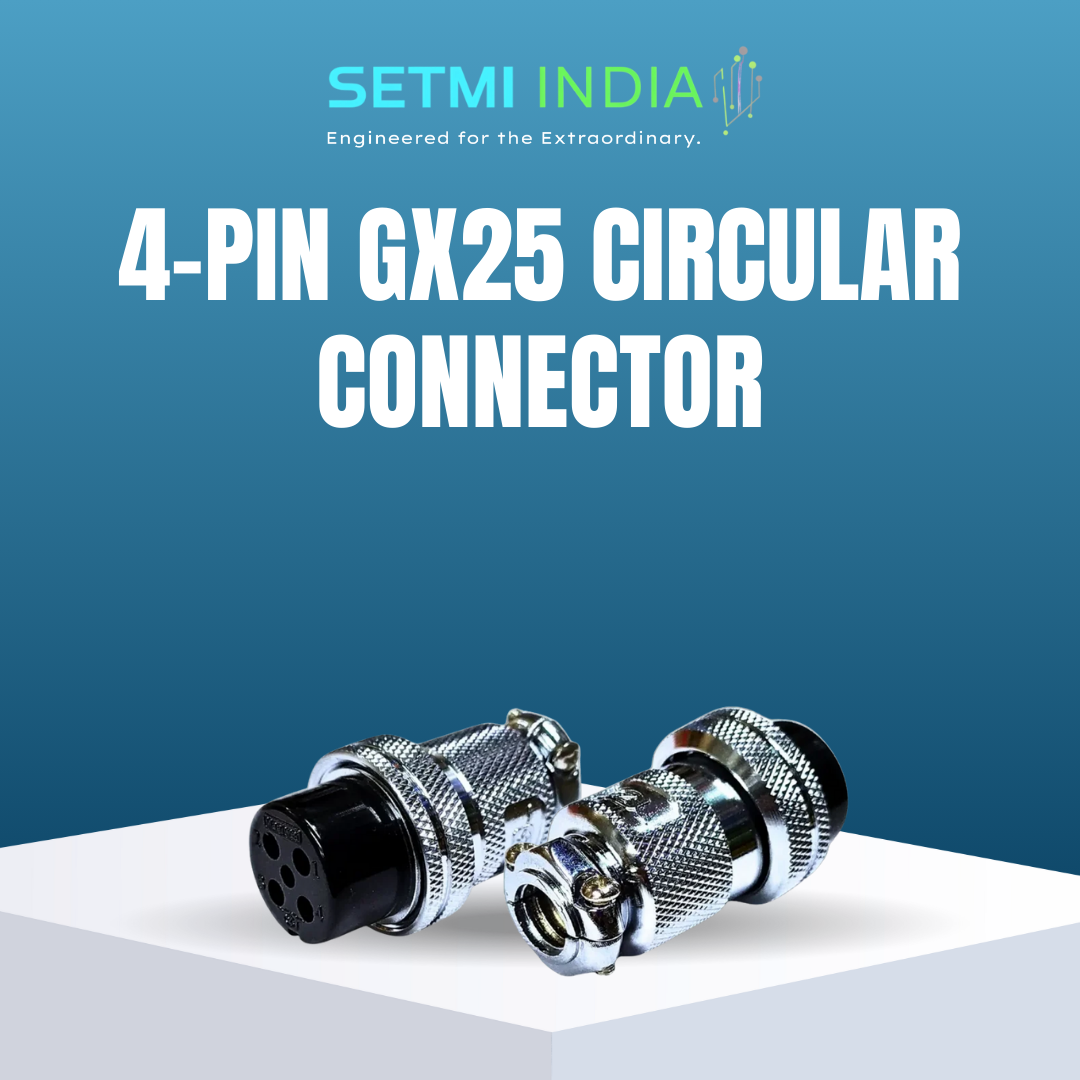

25MM 4 Pins Circular Connector, Soldered Wire, IP67 Waterproof, Threaded Lock

₹670.00

+18% GST25 mm Connector, Circular Connectors, Industrial Automation

Minimum Order Quantity: 2
Outer Diameter (Threaded Section): 25MM
Waterproof Rating: IP65/IP67
Current Rating: 15A – 25A
Voltage Rating: 125V – 500V AC/DC
Pin Configuration: 2 to 12 pins (commonly 4, 5, 6, 8, or 12 pins)

24 x 7 Customer Support
Fast Delivery
High Quality Products

Categories: 25 mm Connector, Circular Connectors, Industrial Automation

Guaranteed Safe Checkout

Description

This 4-pin 25MM male and female aviation connector features a robust nickel-plated brass shell and gold/silver-plated copper alloy pins for exceptional conductivity. With a voltage rating of 125V-500V AC/DC and a current rating of 15A-25A, it offers reliable performance. The secure threaded screw coupling ensures a tight connection, while the IP67 waterproof rating guarantees durability in harsh conditions. Ideal for aircraft and industrial applications, this connector is available in panel mount with a 3-hole circular flange for easy installation

USES

Aviation & Aircraft Wiring: Ideal for use in aircraft and aerospace applications, the 25MM circular connector provides secure and reliable electrical connections for power transmission, avionics systems, and control panels.
Industrial Equipment: Used in industrial automation, machinery, and robotics, the connector ensures safe power and signal transmission in tough environments, offering high current handling and waterproof capabilities.
Outdoor & Marine Applications: Perfect for outdoor installations, including marine electronics, where the IP67 waterproof rating ensures protection against dust and water ingress in harsh weather conditions.
Automotive & Military Vehicles: Employed in military and off-road vehicles for robust and durable connections, with high resistance to vibrations, extreme temperatures, and moisture exposure.

FAQS

1. What is the maximum current rating for the 25MM circular connector?

The maximum current rating for the 25MM circular connector ranges from 15A to 25A, depending on the pin configuration. Higher current ratings are available with increased pin count, ensuring compatibility with power-intensive applications.

2. Can this connector be used for both AC and DC applications?

Yes, this connector supports both AC and DC applications, with a voltage rating of 125V to 500V, making it suitable for a wide range of electrical systems, from low-voltage circuits to high-power transmission systems.

3. What is the material composition of the connector’s pins and shell?

The connector features a corrosion-resistant nickel-plated brass shell, ensuring durability and resistance to environmental factors. The pins are made from high-conductivity copper alloy and are gold or silver-plated for superior conductivity and reduced signal loss.

4. What are the specific waterproof ratings for this connector, and how do they differ?

The connector is available in IP65 and IP67 waterproof ratings. IP65 offers protection against low-pressure water jets, while IP67 provides complete protection against immersion in water up to 1 meter deep, making it ideal for demanding outdoor and marine environments.

5. What type of connection method is used for this connector, and is it suitable for high-vibration environments?

The 25MM circular connector uses soldered wire connections, ensuring a secure and durable electrical bond. Additionally, the threaded screw coupling provides a tight and vibration-resistant fit, making it suitable for use in high-vibration environments such as aerospace and automotive applications.

Additional information

Pin Variation	2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 7 Pin, 8 Pin, 10 Pin, 12 Pin
