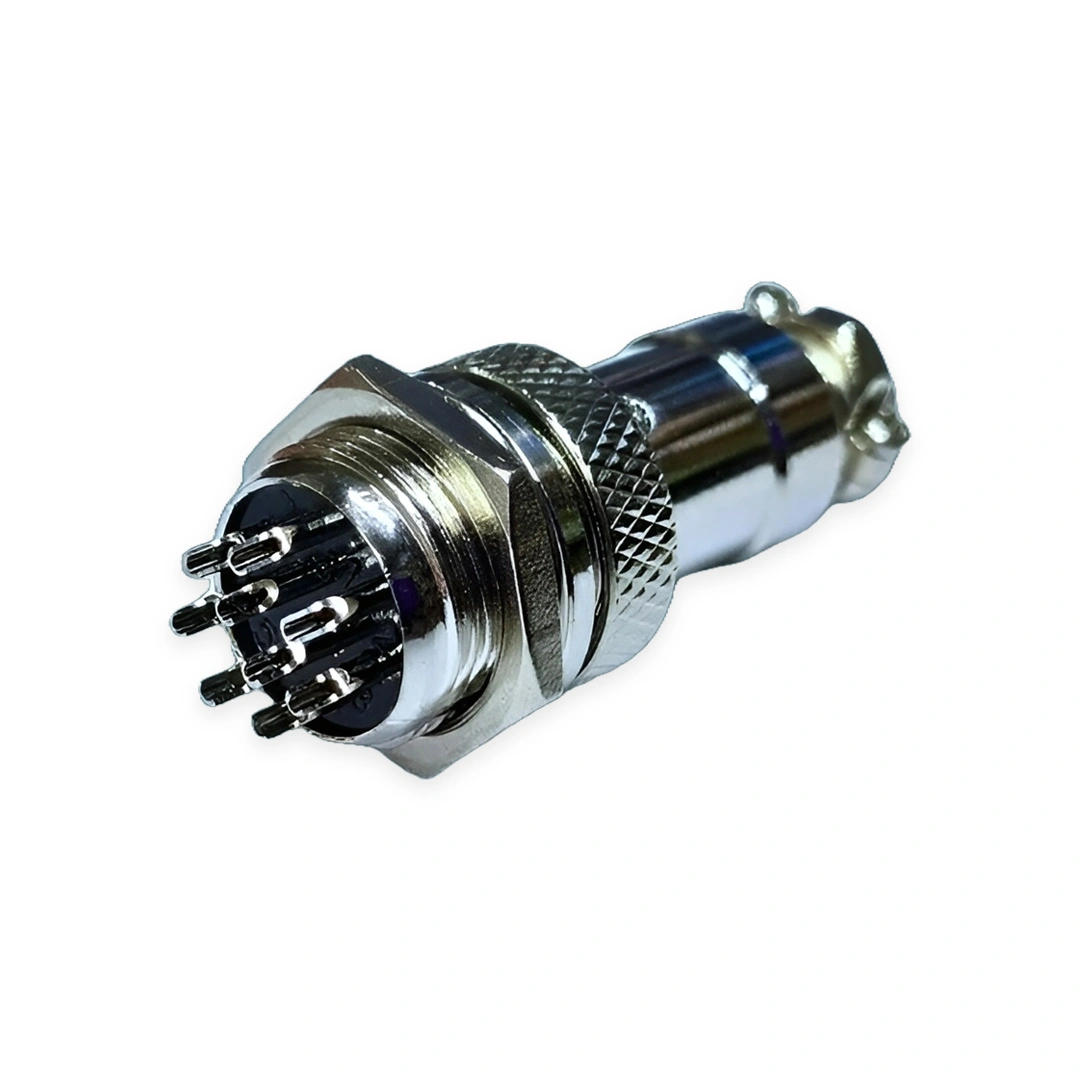

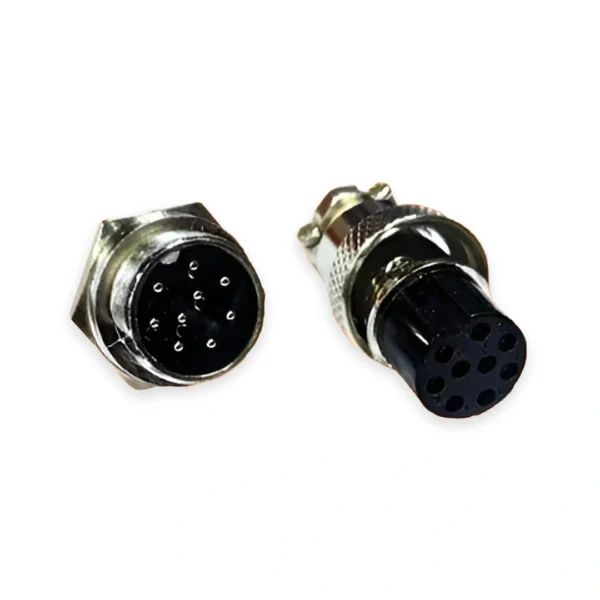

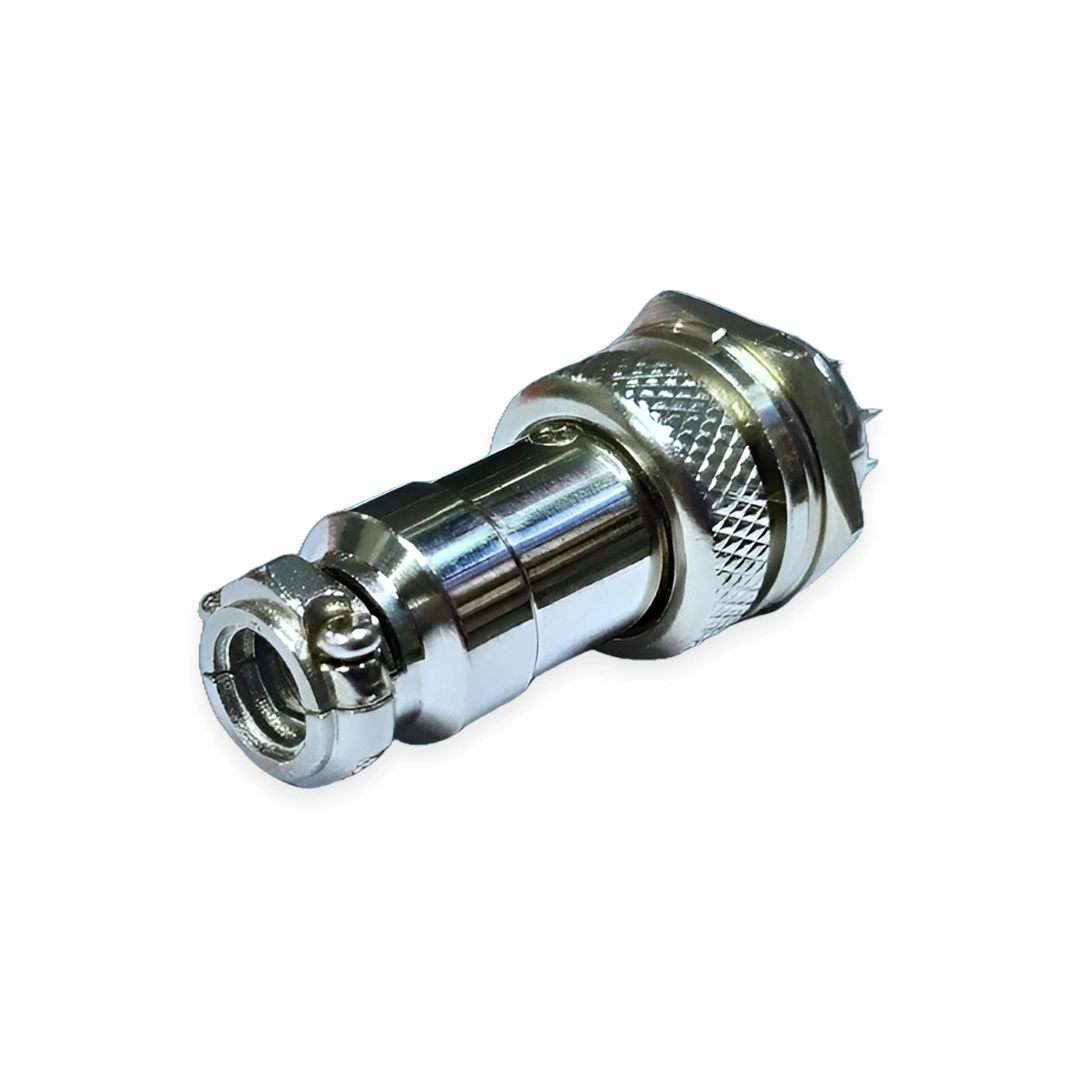

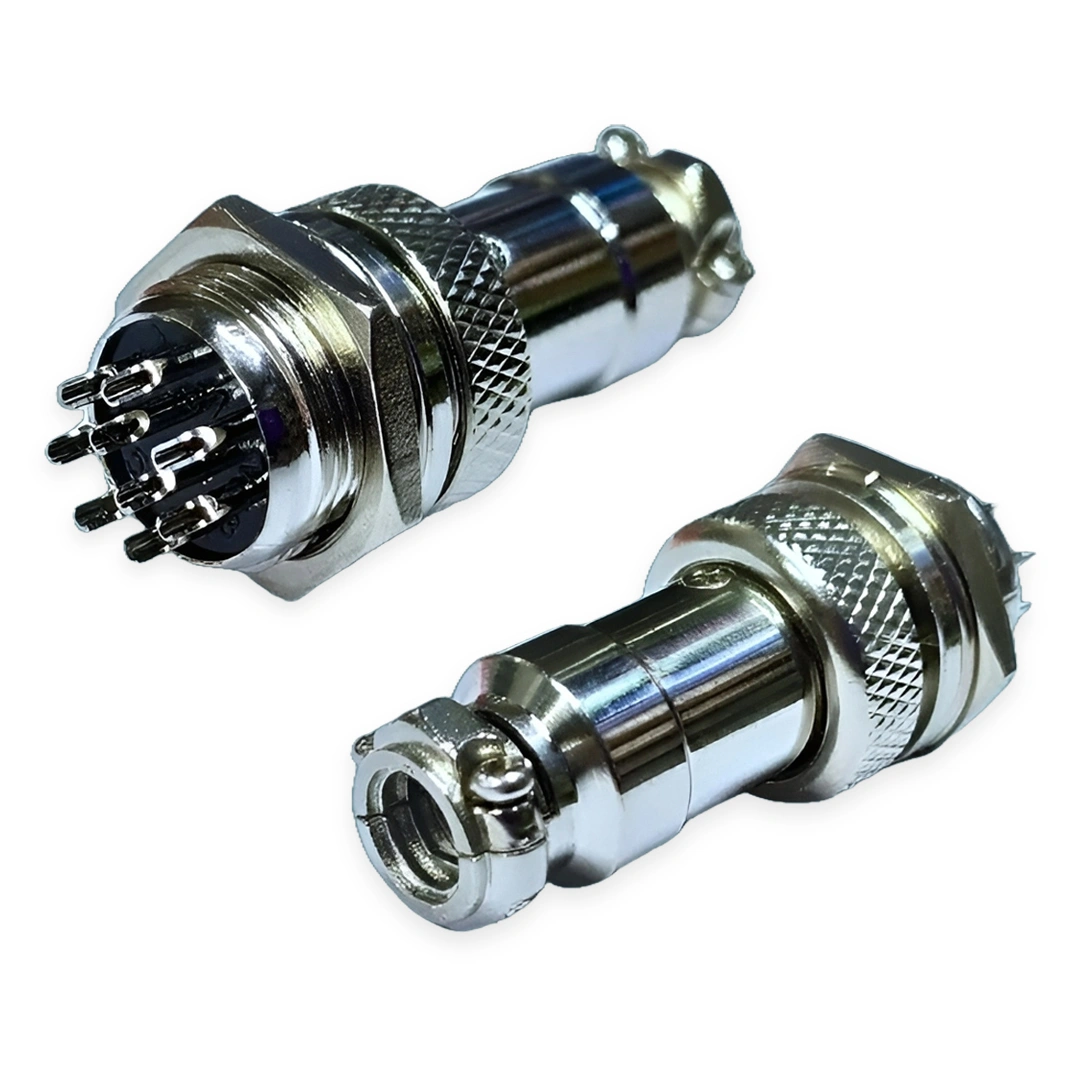

GX16 9-Pin Aviation Plug & Socket Connector – 16mm Circular Metal Connector

₹140.00

+18% GST, , ,
  • Connector Type: GX16 9-Pin Circular Aviation Plug & Socket
  • Thread Size: M16 x 1 Threaded Coupling for Secure Locking
  • Electrical Rating: 125V-250V AC/DC, 5A-15A Current Capacity
  • Material: Nickel-Plated Brass Shell, Copper Alloy Pins
  • Operating Temperature: -40ºC – 85°C
  • 24 x 7 Customer Support
  • Fast Delivery
  • High Quality Products
Categories: , , , Tags: ,
Guaranteed Safe Checkout

Description

GX16 9-pin aviation plug & socket connector with a 16mm threaded coupling for secure connections. Built with a nickel-plated brass shell for corrosion resistance and copper alloy pins for efficient conductivity. Supports AC/DC 125V-250V, handling 5A-15A current. Designed for panel mounting and soldered wire connections, making it ideal for industrial automation, sensors, and power supply systems.

USES

  1. M16 x 1.0 Threaded Coupling – Precision-engineered screw-lock mechanism prevents accidental disconnection, ensuring a stable and vibration-resistant connection in machinery, automation systems, and control panels.

  2. Nickel-Plated Brass Shell – The rugged metal housing offers superior corrosion resistance, protecting the connector from oxidation, moisture, and wear, making it ideal for high-temperature and harsh industrial environments.

  3. Copper Alloy Pins (1.5mm Diameter, 5.5mm Spacing) – High-conductivity contacts minimize resistance and voltage drop, providing reliable signal and power transmission with enhanced durability against arcing or overheating.

  4. Solder Terminals (Supports 22-16 AWG Wires) – Secure solder-type terminals ensure strong electrical connections, preventing loose wiring in applications requiring stable power delivery and low-loss signal transmission.

  5. Rated for 500+ Mating Cycles – Designed for frequent plugging and unplugging, the connector maintains low contact resistance and mechanical integrity over prolonged usage, suitable for industrial automation, robotics, and aviation systems

FAQS

  1. What is the exact thread specification of the GX16 9-pin connector?
    The GX16 connector features an M16 x 1.0 threaded coupling for secure locking, ensuring vibration-resistant connections in industrial applications.

  2. What is the pin diameter and spacing in the GX16 9-pin connector?
    The pin diameter is approximately 1.5mm, with a pin spacing of 5.5mm, designed for stable current flow and low contact resistance.

  3. What is the maximum wire gauge supported for solder termination?
    This connector supports 22-16 AWG wires, allowing efficient soldering for both signal and power transmission applications.

  4. What is the rated insulation resistance and contact resistance?
    The insulation resistance exceeds 1000MΩ at 500V DC, while the contact resistance remains below 10mΩ, ensuring minimal signal loss and stable conductivity.

  5. Can this connector withstand high mechanical stress or frequent mating cycles?
    Yes, the GX16 9-pin connector is rated for over 500 mating cycles, featuring a robust nickel-plated brass shell and spring-loaded contacts for secure, long-term performance.

Additional information

Pin Variation

2 PIN, 3 PIN, 4 PIN, 5 PIN, 6 PIN, 7 PIN, 8 PIN
Connector Type

Circular Connectors, Socket + Plug
Circular Connector diameter

16 mm
Connectors

Circular Connector
gender

Male + Female
Material

nickel-plated brass shell
Pin Configuration

9 pin
Pin Material

silver-plated copper alloy pins
Voltage Rating

250V AC/DC
